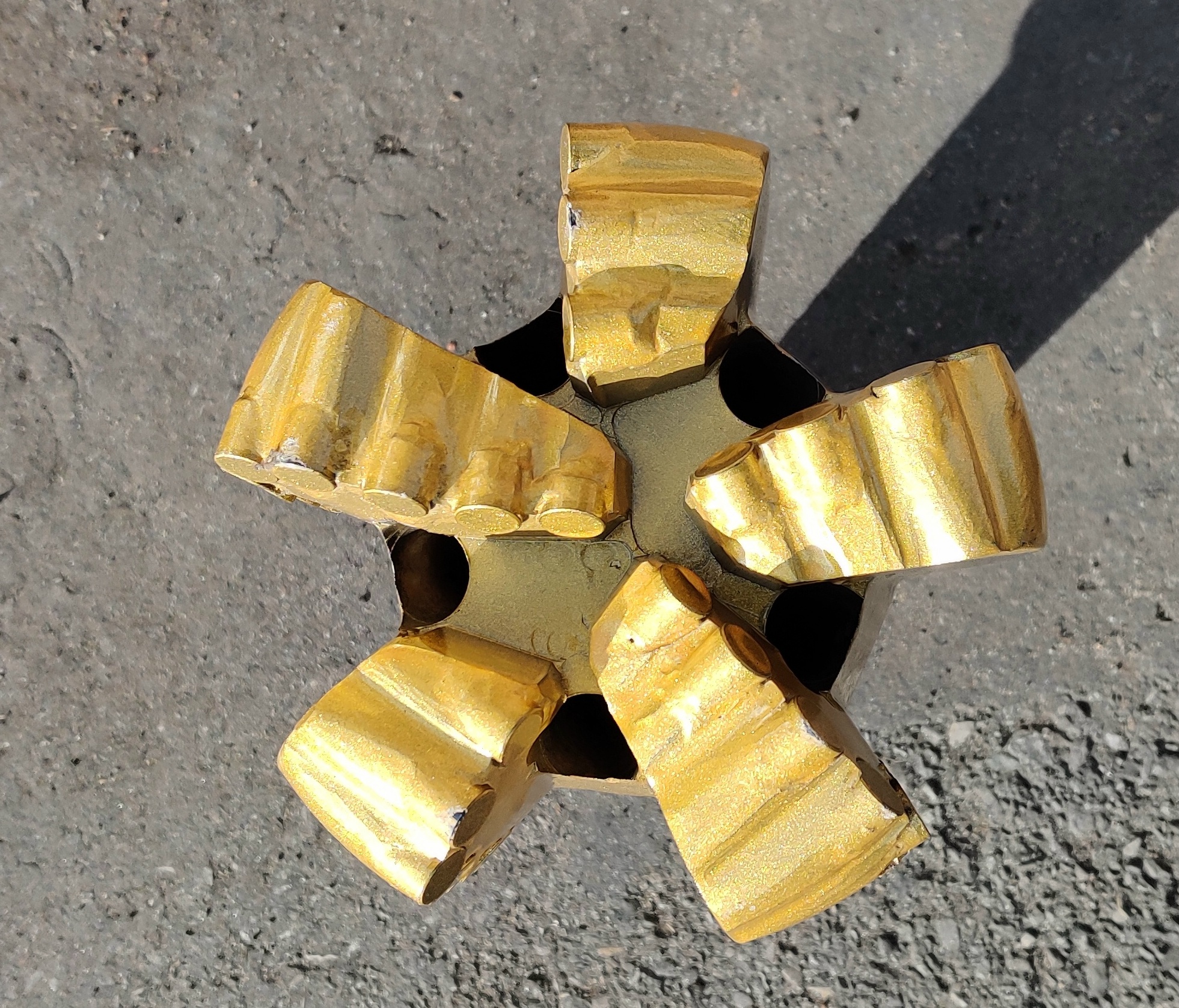

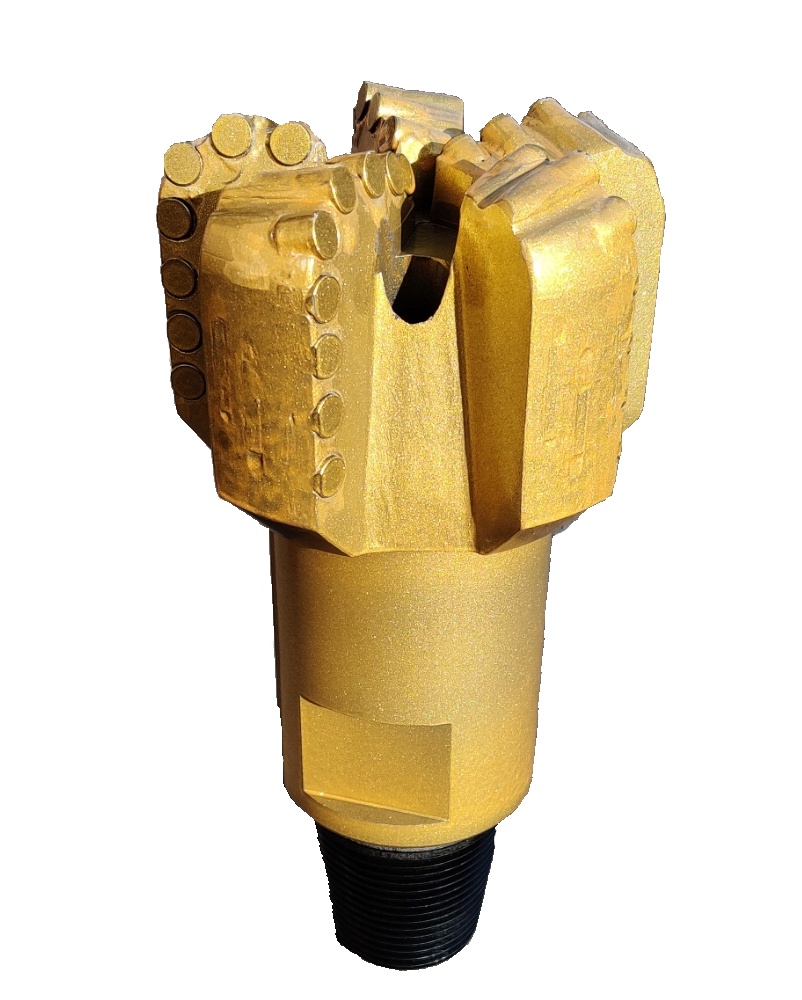

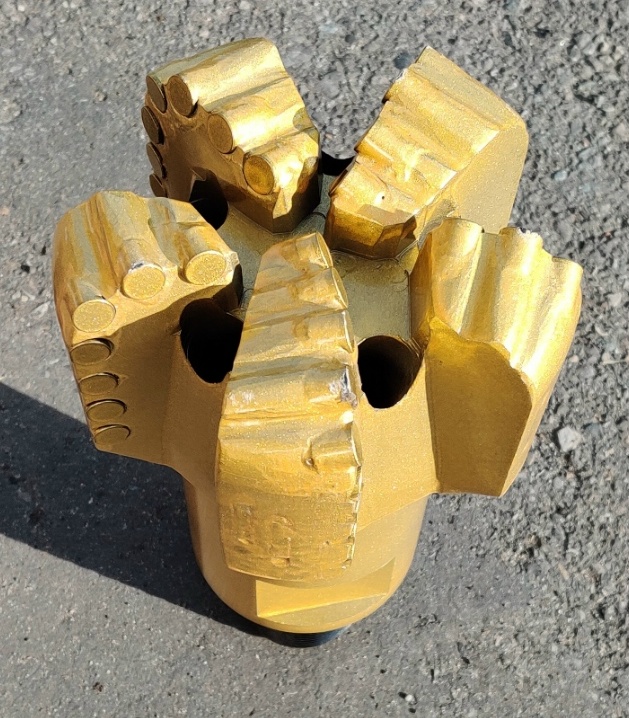

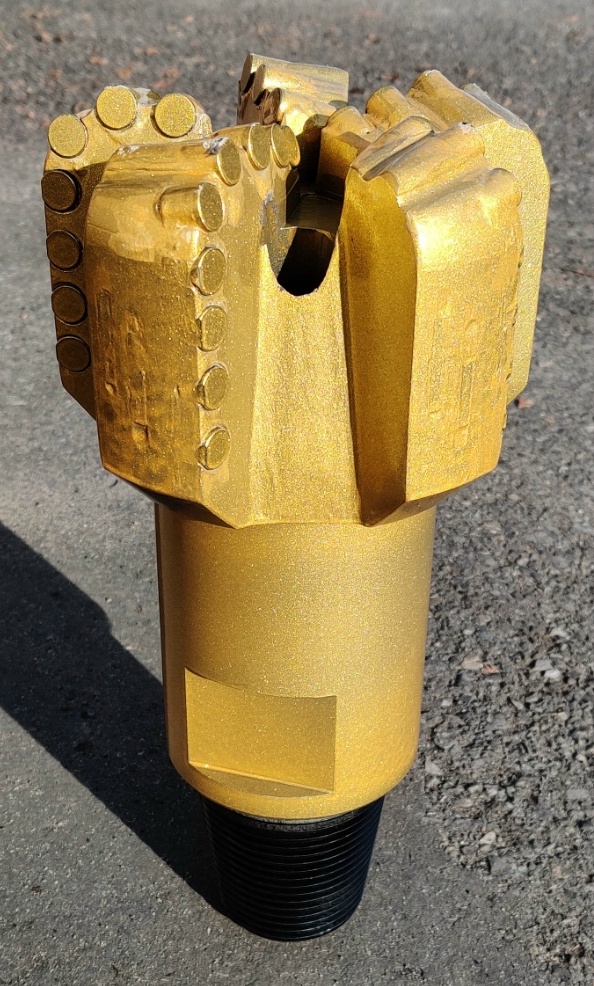

The STO5 is a 5 blade PDC drill bit consisting of a solid steel body with a drill head geometry as used in the oil and gas industry.
They called PDC cutters are 13mm long inserted directly into the massive one-piece steel body.
The increased caliber protection is made of hard metal-insertion in the 5 flank of the drill bit.
Because of its geometry, this type is particularly suitable for hard and very hard sedimentary rocks such as clay, marl, sand and limestone.
Where long life and constance drilling advance can be achieved..
This type is available in the following sizes:
| Ø in inch |
Ø in mm |
Thread
|
Available
|
| 3 7/8" |
98 |
2 3/8" API Regular |
No |
| 4" |
102 |
2 3/8" API Regular |
No |
| 4 1/4" |
108 |
2 3/8" API Regular |
No |
| 4 1/2" |
114 |
2 3/8" API Regular |
No |
| 4 3/4" |
121 |
2 3/8" API Regular |
No |
| 5" |
127 |
2 3/8" API Regular |
Yes |
| 5 1/8" |
130 |
2 3/8" API Regular |
Yes |
| 5 5/8" |
143 |
2 3/8" API Regular |
Yes |
| 5 7/8" |
149 |
2 3/8" API Regular |
Yes |
| 6" |
152 |
3 1/2" API Regular |
Yes |
| 6 1/4" |
159 |
3 1/2" API Regular |
Yes |
| 6 3/4" |
171 |
3 1/2" API Regular |
Yes |
| 7 3/8" |
187 |
3 1/2" API Regular |
Yes |
| 7 5/8" |
194 |
3 1/2" API Regular |
Yes |
| 8 1/2" |
216 |
3 1/2" API Regular |
Yes |
| 9" |
229 |
3 1/2" API Regular |
Yes |
| 9 5/8" |
244 |
3 1/2" API Regular |
Yes |
| 9 7/8" |
251 |
3 1/2" API Regular |
Yes |
| 10" |
254
|
3 1/2" API Regular |
Yes |
|
)
)
)
